Amiga 4000 Partially Populated Replica Motherboard

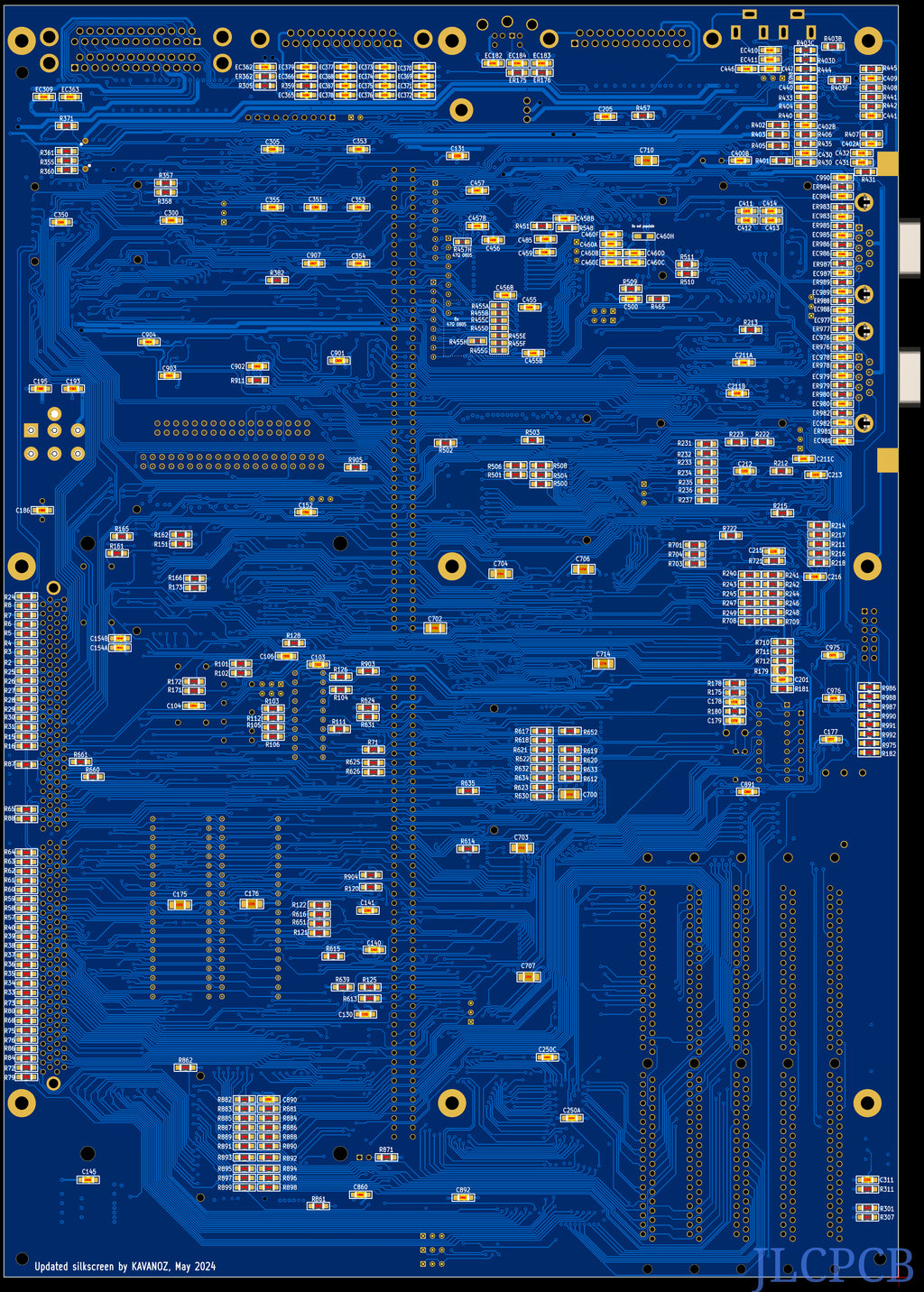

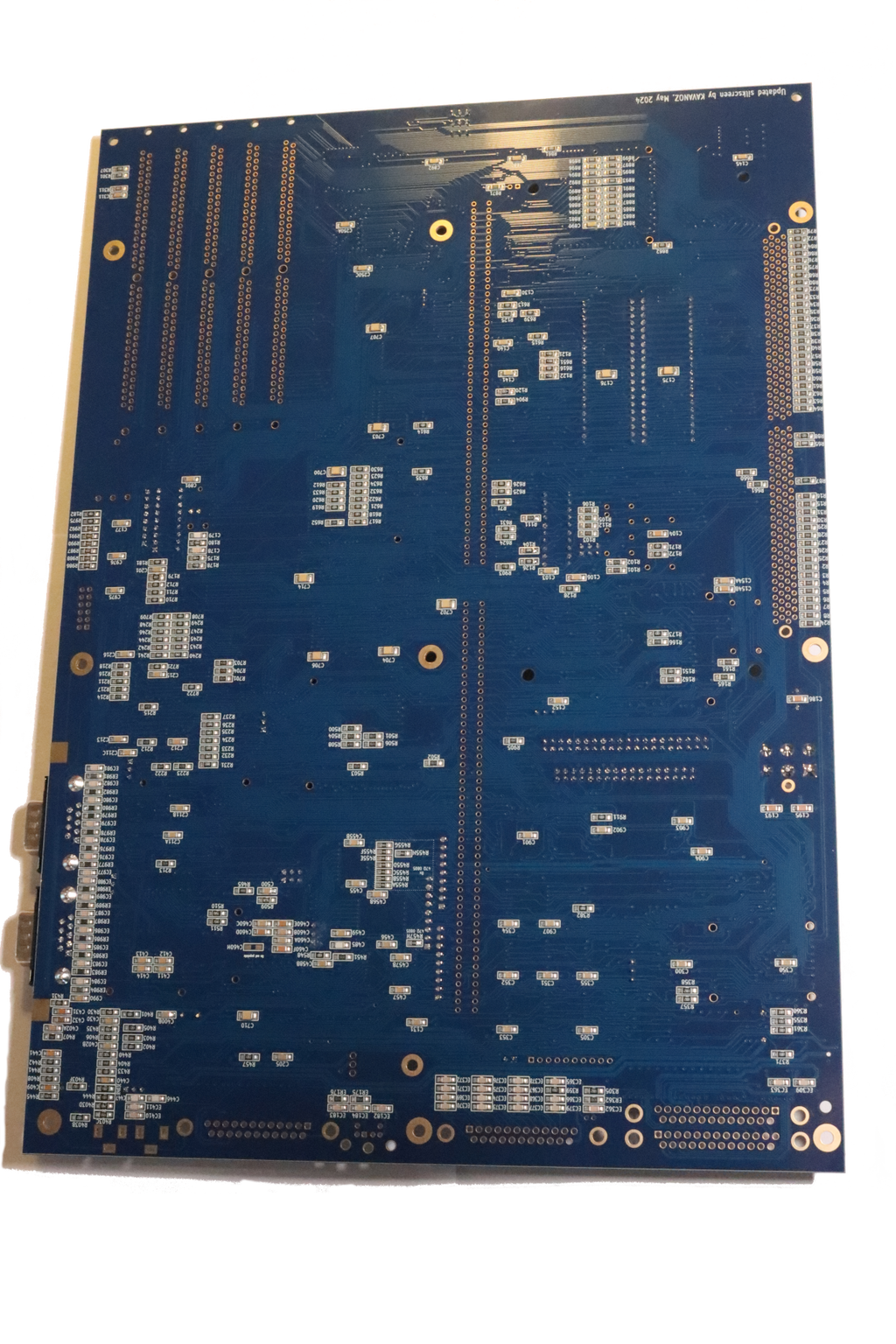

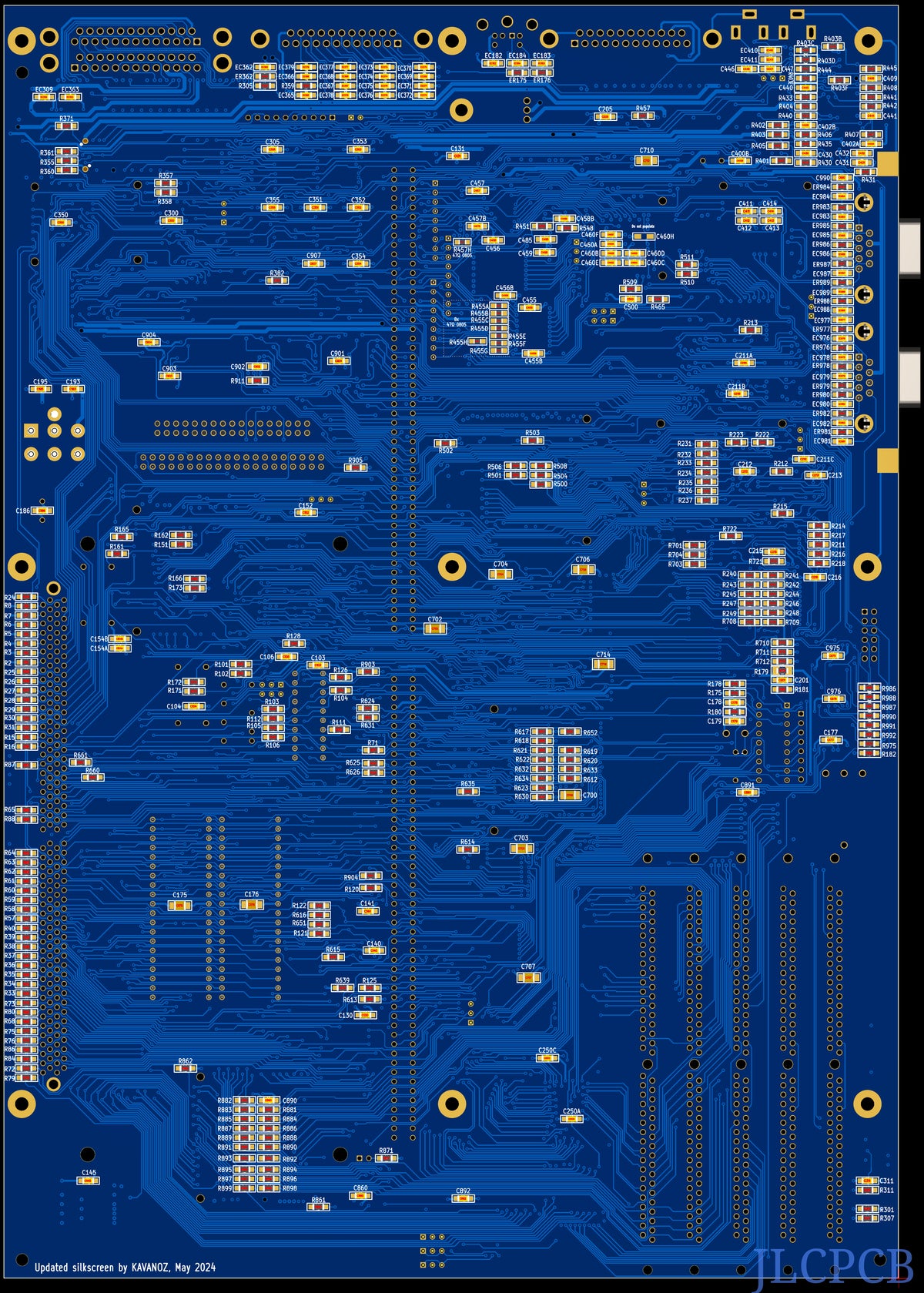

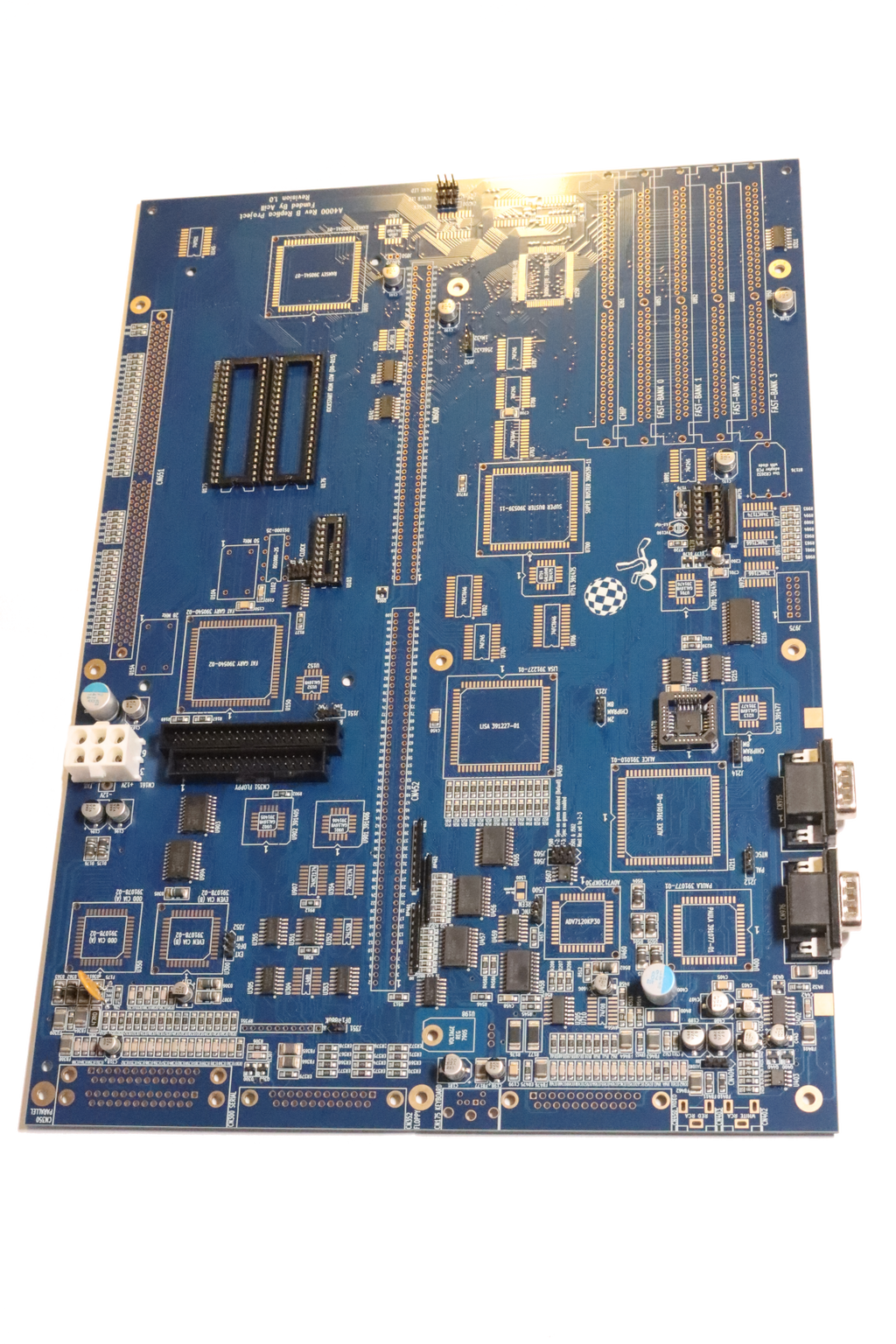

New and unused replica PCB of the Amiga 4000 desktop motherboard, partially mounted with many new quality components.

A4000 Rev B Replica Project, revision 1.0

If your A4000 motherboard has suffered battery leakage or other damage and is beyond repair, you might want to switch it out for this incredible replica motherboard, made one-to-one with the original, and move all your components over (or get new versions of a bunch of them). The project offers an extensive BOM list as well as build guides on the website.

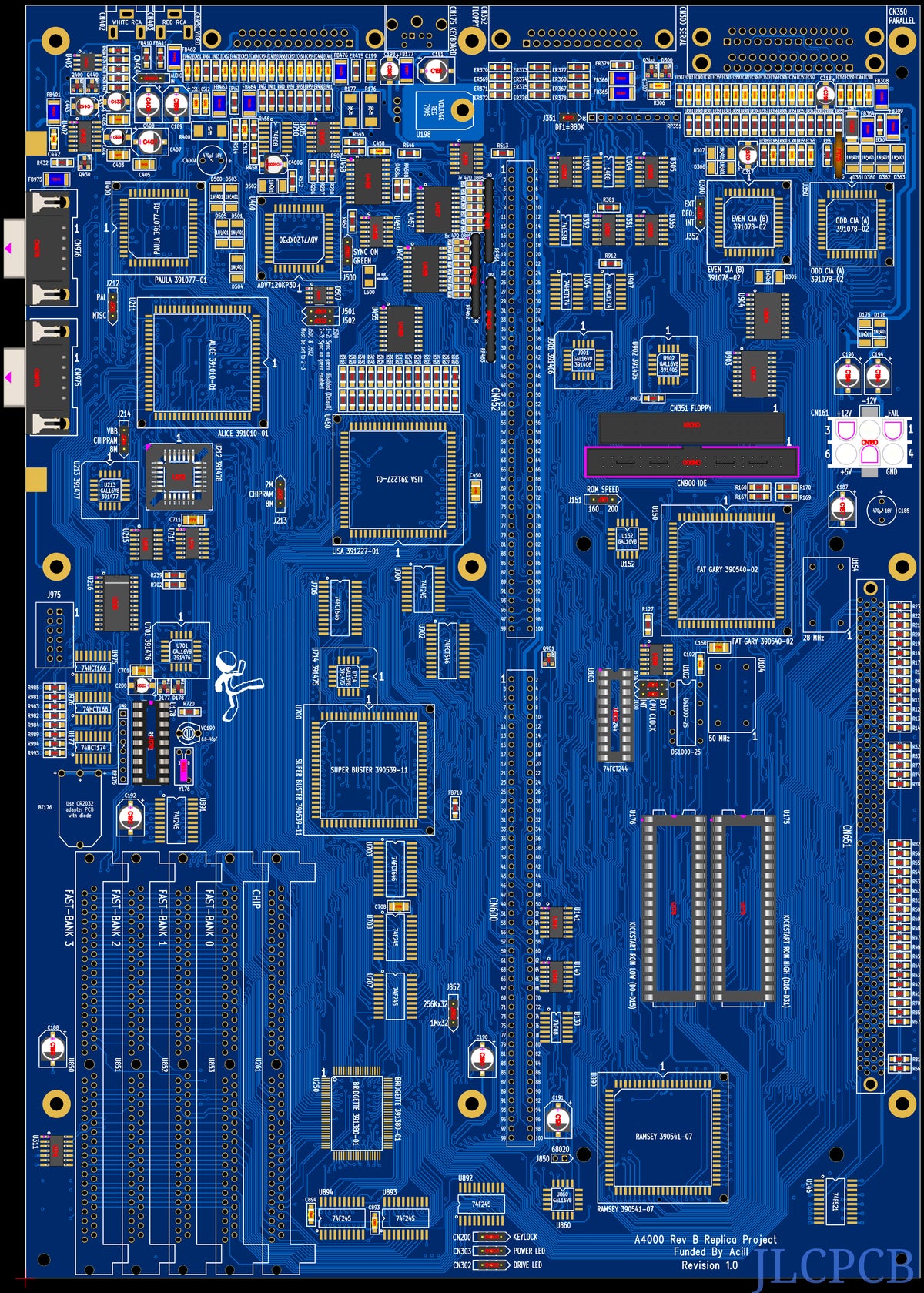

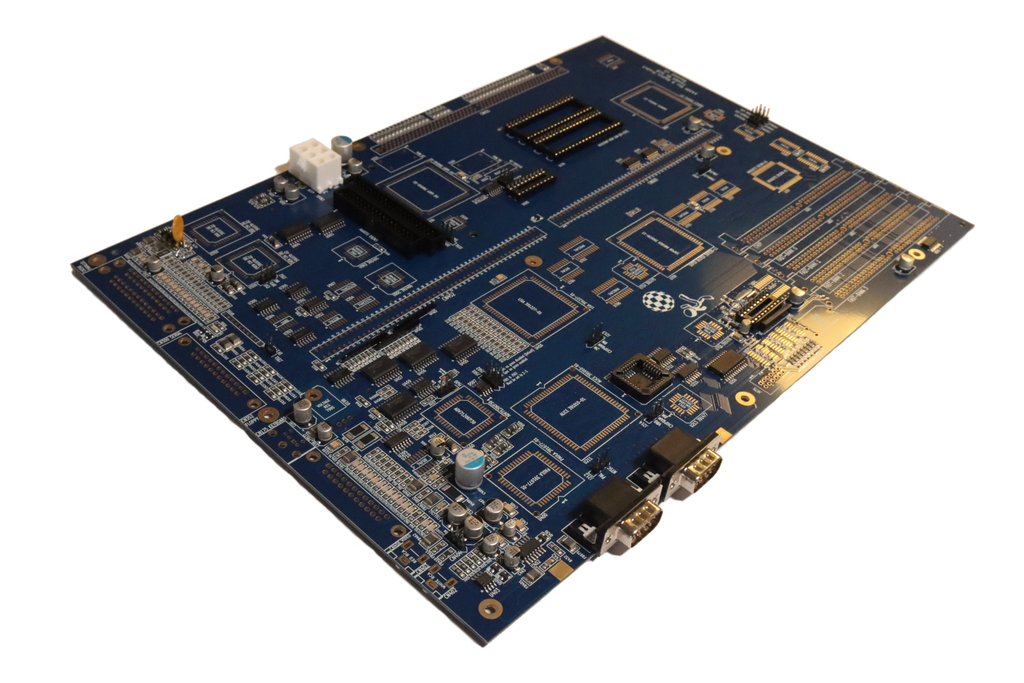

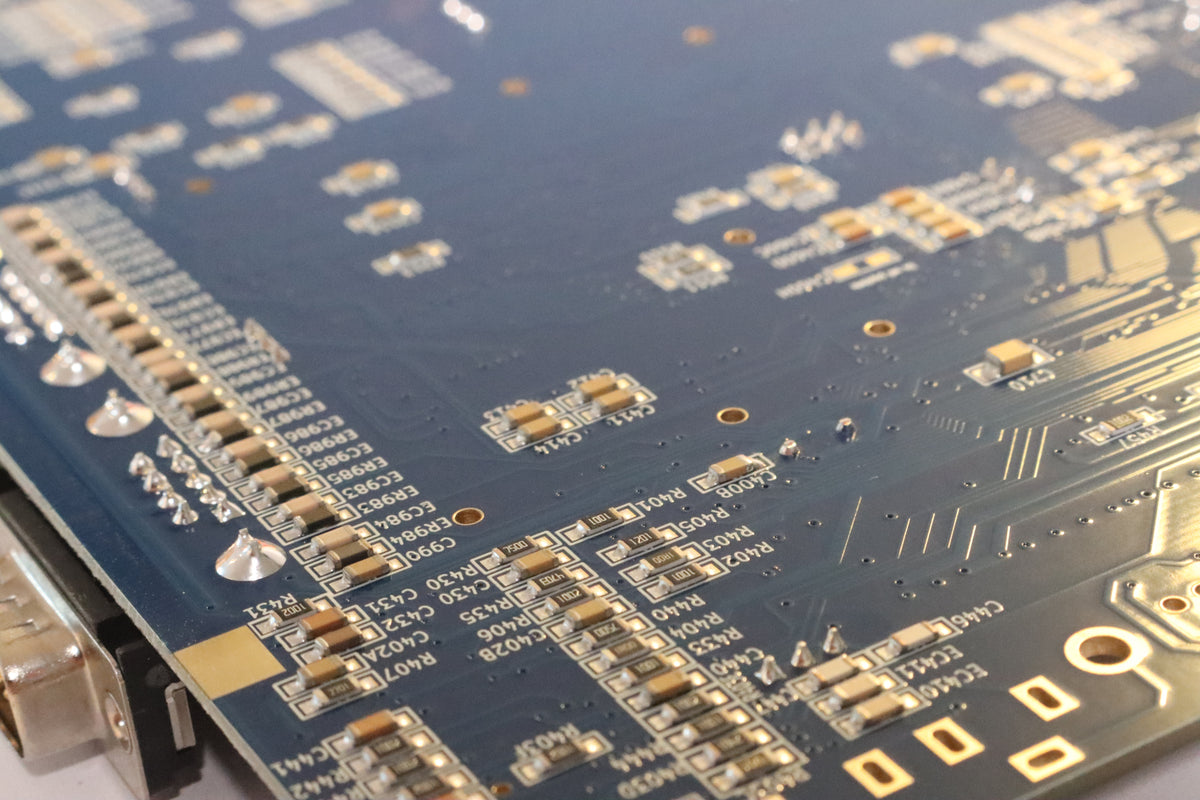

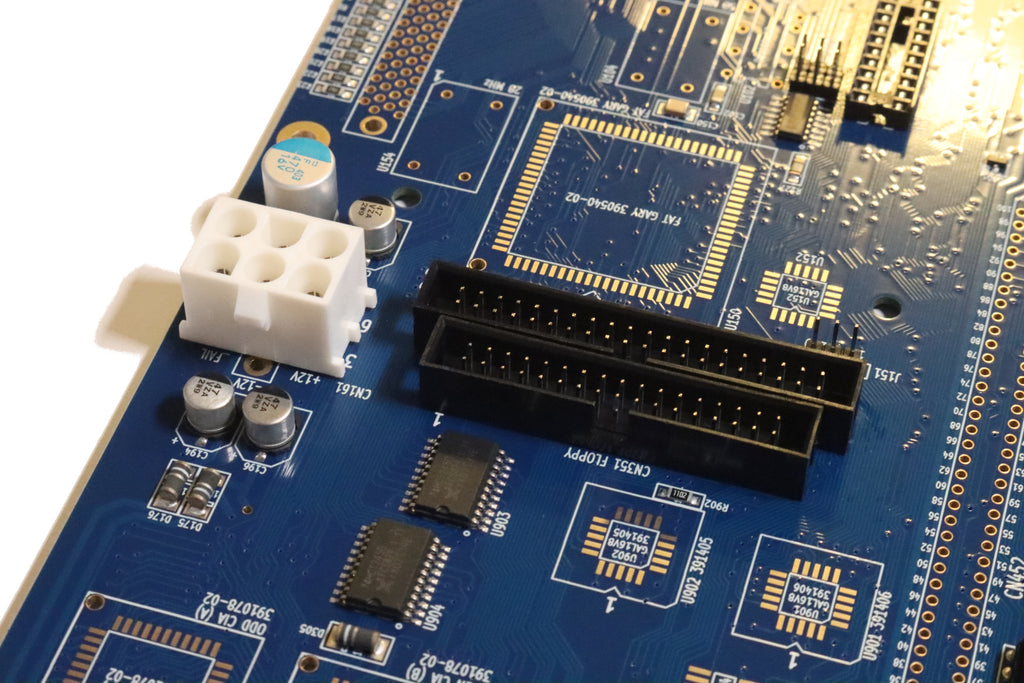

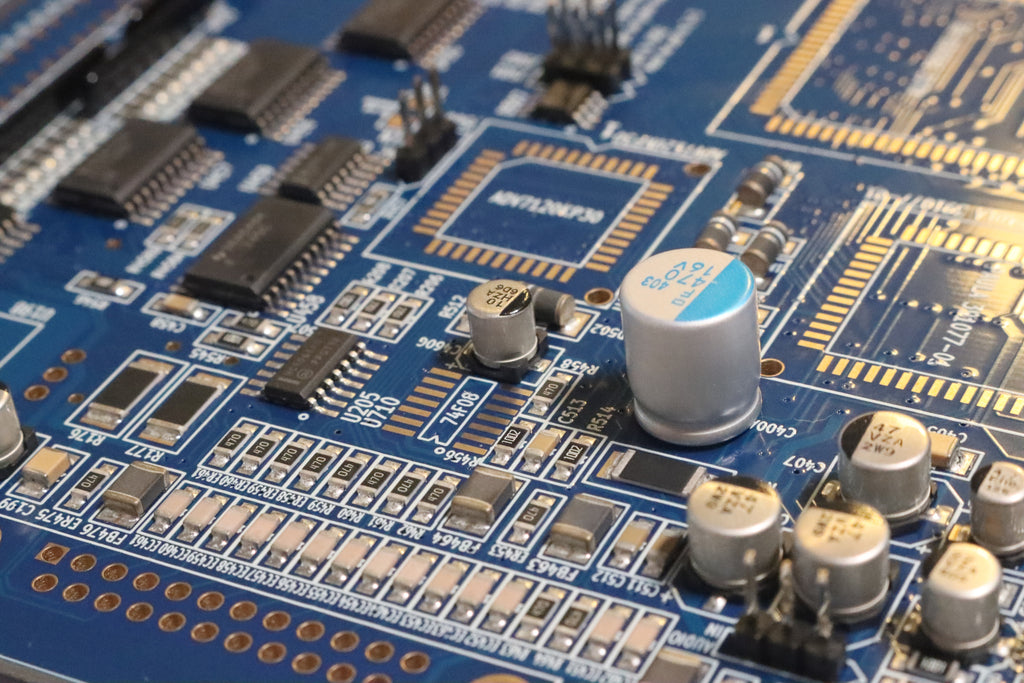

The board comes with many of the needed components pre-mounted, such as resistors and capacitors, but also a good amount of connectors and ICs. A few components come loose. All supplied components are of high quality, good brands. There will be some components that are not included -- for example the Amiga-specific chips -- and these will need to be moved over from an existing Amiga 4000 motherboard.

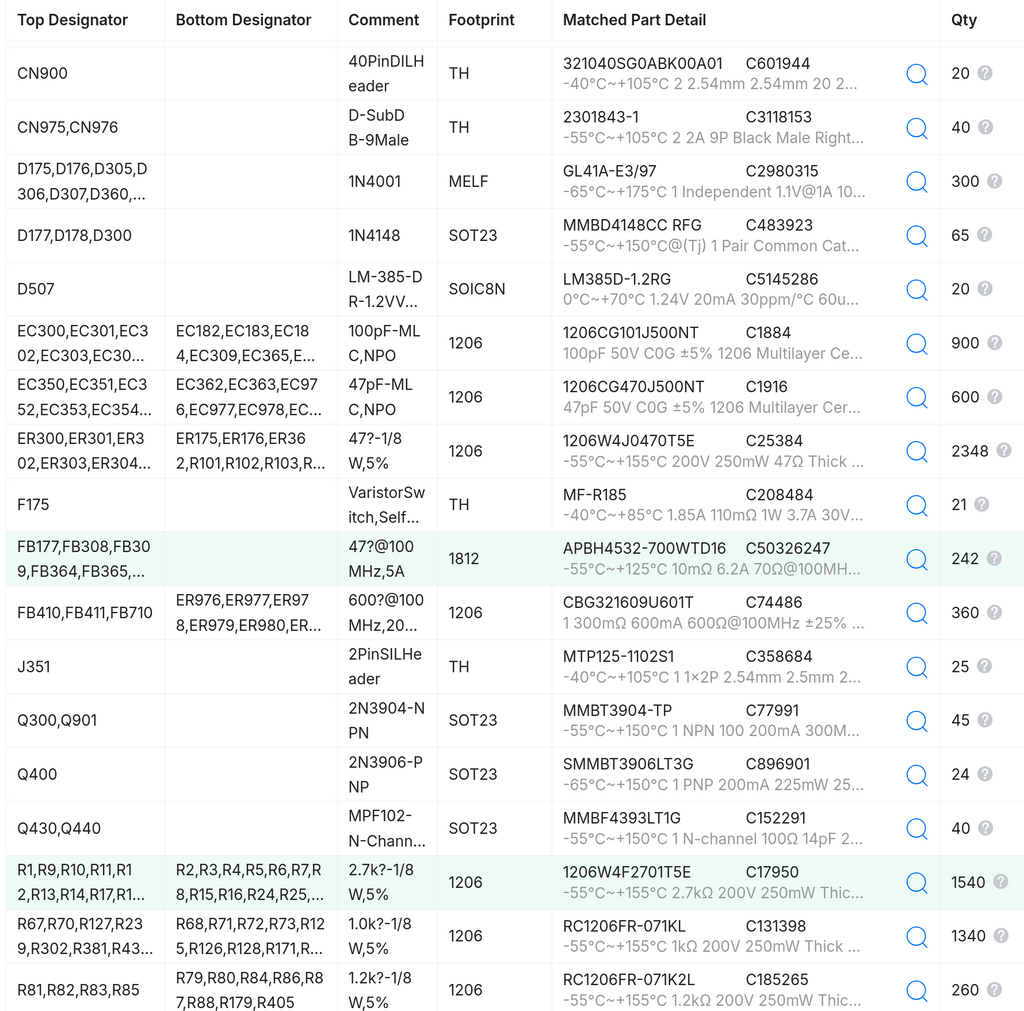

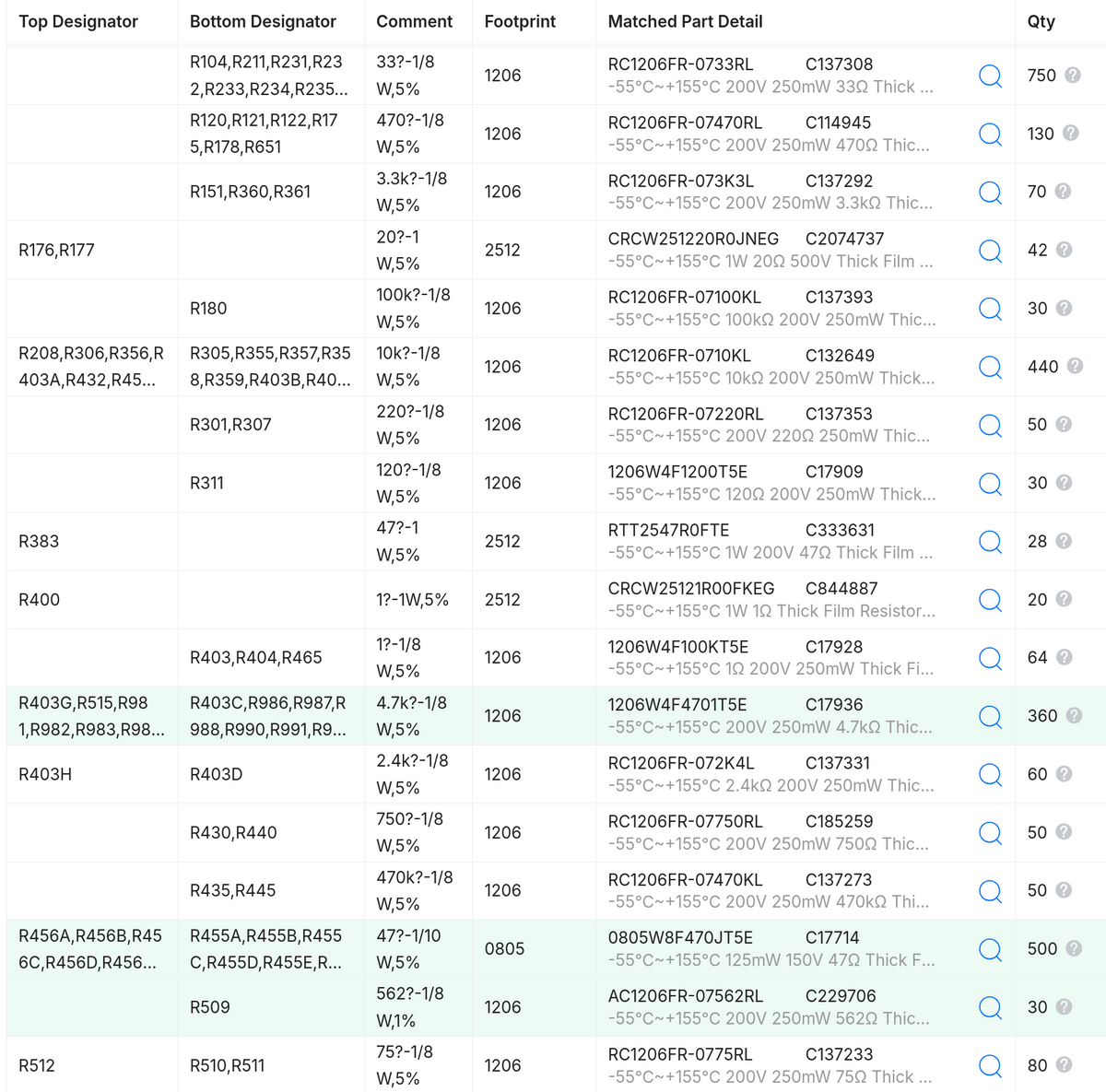

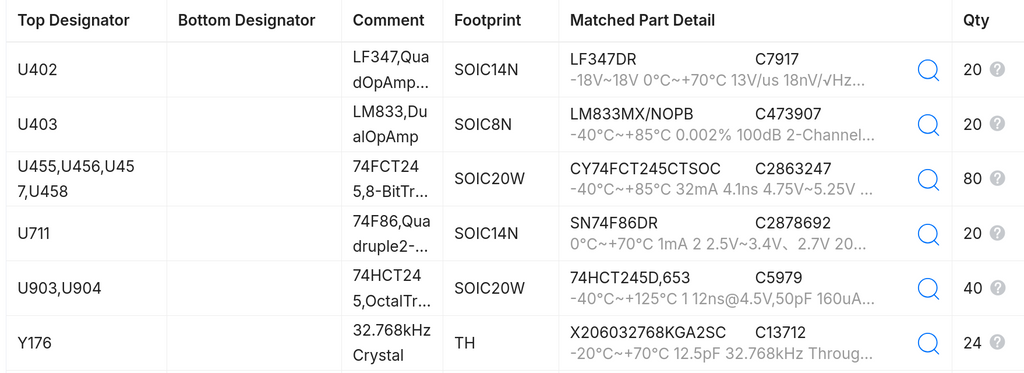

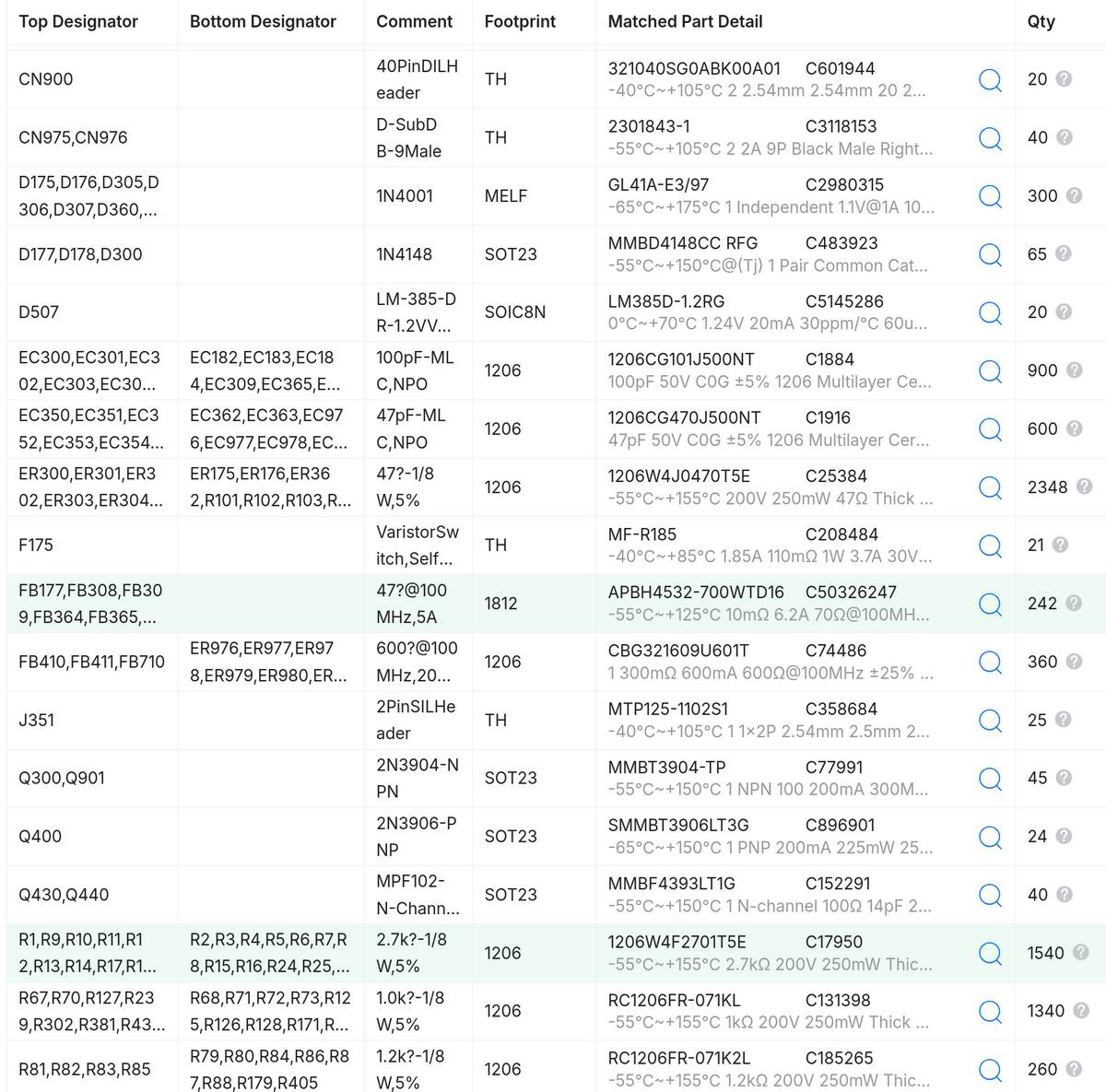

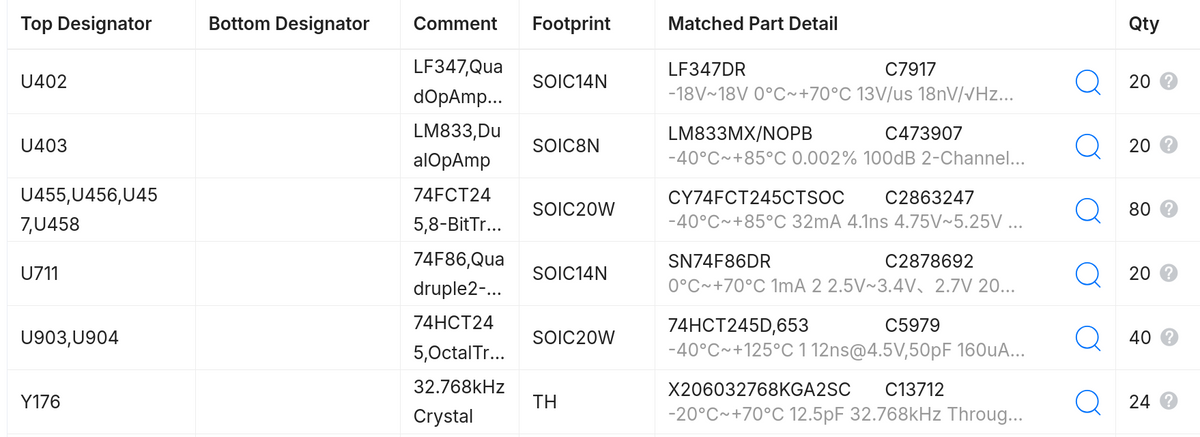

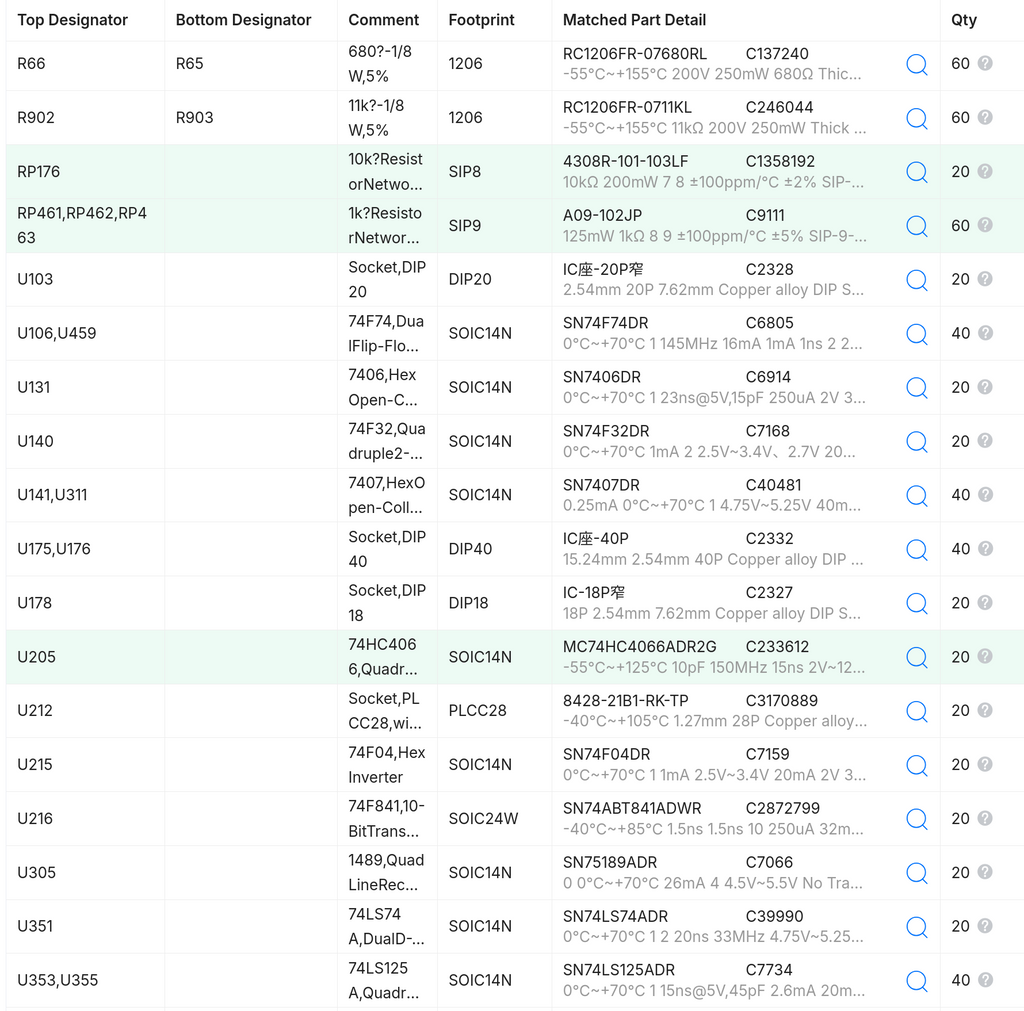

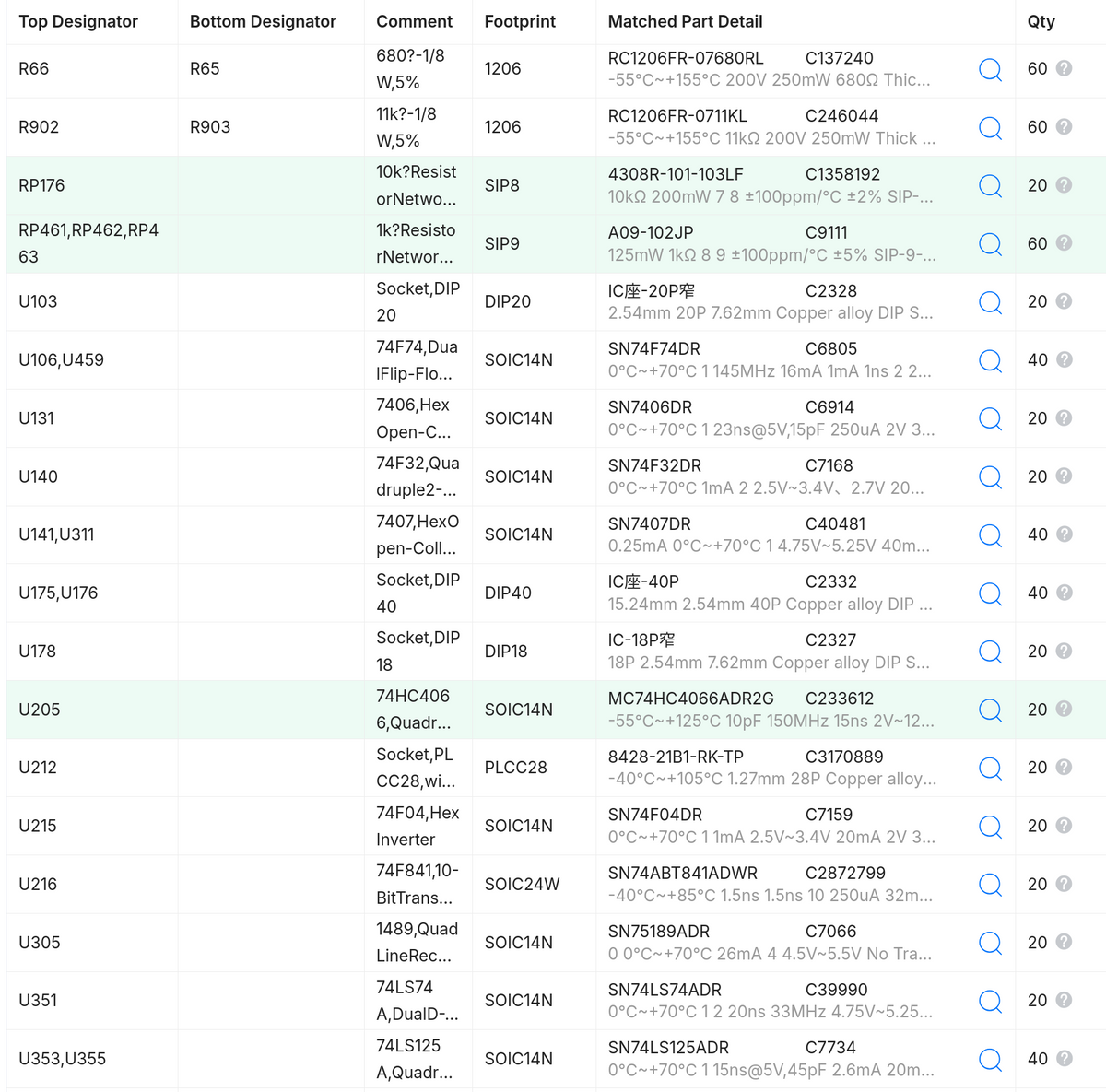

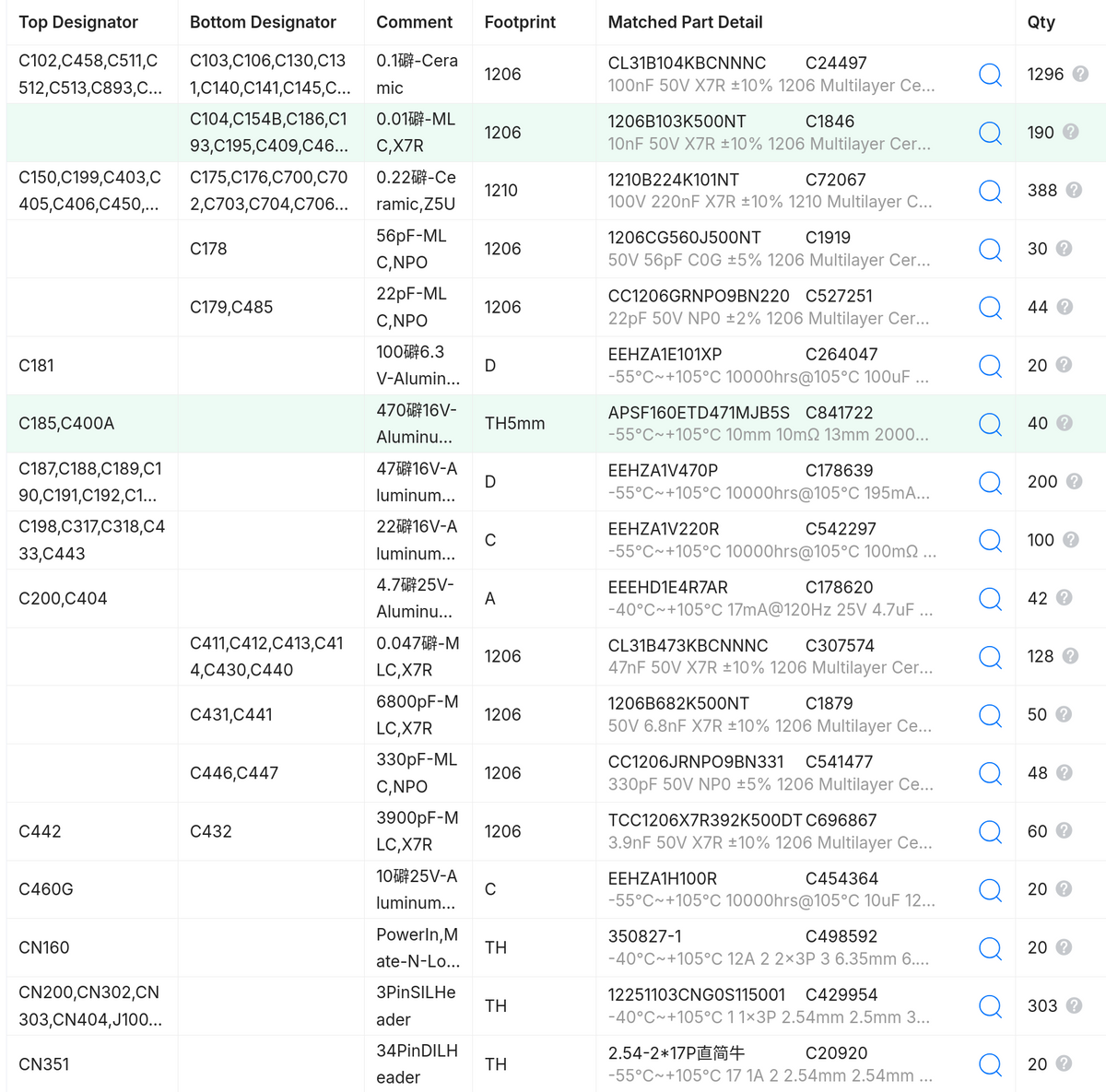

Overview of mounted and included loose parts (PDF)

This PCB is manufactured as a 243 × 345 mm, 4-layer board using 1.6 mm FR4 TG135 material, with an ENIG (gold) surface finish to protect the copper against oxidation.

This is the Rev B motherboard, i.e. you need a CPU card, which is not a part of this listing. Also, the daughterboard is not included.

We are also offering only the PCB without any components (but optionally with stencils) as a separate listing.

The A4000 Replica Project: https://github.com/Acill/A4000RevB
A4000 Locator Site: http://locator.reamiga.info/locator.php?project=A4000
A4000 Build Guide: https://wordpress.hertell.nu/?p=1053
Updated BOM: https://shred.github.io/a4000-bom/
