C64/VIC-20-strømforsyning
High-quality Commodore 64 replacement power supply unit (PSU). Designed specifically for C64 and VIC-20 systems to preserve them in a pristine condition for years to come. Stabilized and filtered +5V/2.0A DC along with 9V/1.1A AC ensure continued error-free operation of your C64. Robust and sturdy chassis with LED-illumination. Fully fused and electrically protected, with round DIN7 plug matching the original C64 PSU pinout.
Features
- Replacement power supply for Commodore 64 and VIC-20
- Stabilized 5V/2.0A DC output with anti-ripple filter
- Transformer-generated 9V/1.1A AC output
- Over-voltage and over-current protection
- Fused on AC and DC side and fully isolated
- LED-illuminated high quality chassis
- Potentiometer for adjusting LED brightness
- Durable and thick cables on both sides
- Runs cold
- Weight only 0.6 kg (1.3 lb)
- Compact enclosure with modern shape 125 mm x 59 mm x 42 mm (5.0" x 2.3" x 1.6")

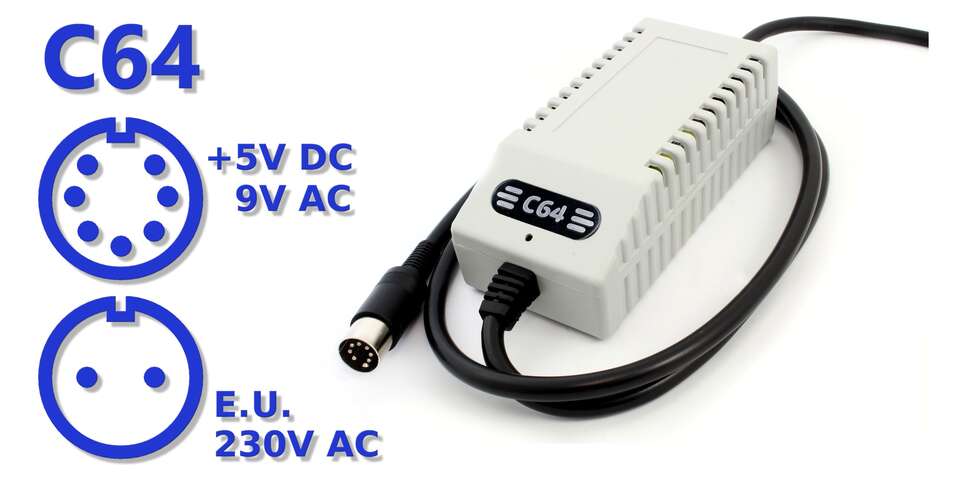

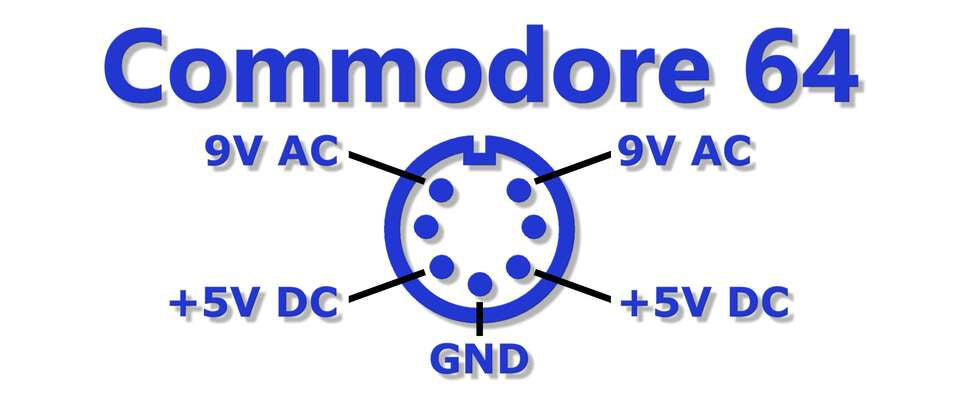

- Round DIN7 plug with 5V DC and 9V AC
- EU-standard 230V AC power plug (continental Europe)
Robust and reliable design

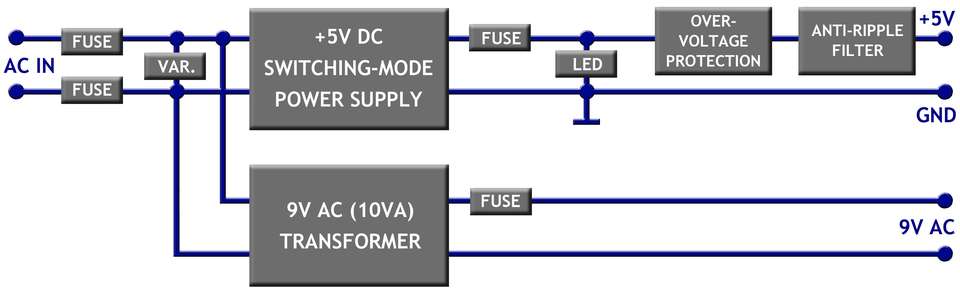

The C64 PSU was designed from scratch as a high-quality replacement for the original Commodore power supply. It contains a +5V/2.0A DC switching power module with an anti-ripple filter, along with a true transformer-based 9V/1.1A AC module. The power supply has a sturdy custom-made chassis with an elegant LED-illuminated logo.
Precision and dedication
The development of our series of Commodore, Amiga, Sinclair, Atari, Coleco, and TI power supplies has been driven by a sense of sentiment for retro-computing, combined with accuracy and dedication in creating electrical equipment to be proud of. It goes without saying, that the electronics has been designed by skilled professionals, thoroughly tested, and improved based on years of feedback from thousands of users. However, we have also put a lot of effort into the visual appearance of our power supplies. We design and manufacture our own enclosures with CNC and injection molding technologies. The LED and OLED panels are carved from PMMA to give a modern appearance to the power supplies. Hundreds of hours of designing and perfecting have been put into these devices, to create not only a safe and robust power supply, but also a satisfying visual improvement to your system.
What else is out there?
The original Commodore power supplies are very hard to get by these days, and often pose a reliability or even safety threat. As for other replacement power supplies, a handful of solutions exist on the market. Yet most of them are DIY-grade, lacking basic quality, electric engineering expertise, and safety features. The vast majority of these power supplies is recognizable by general-purpose plastic enclosures and internal components wired up in a true DIY style. Opening up a few of those power supplies was big motivation for us to design our Commodore C64, C128, Amiga, Atari, ZX Spectrum, Sinclair QL, TI-99/4A, and ColecoVision power supply series.
Safety first

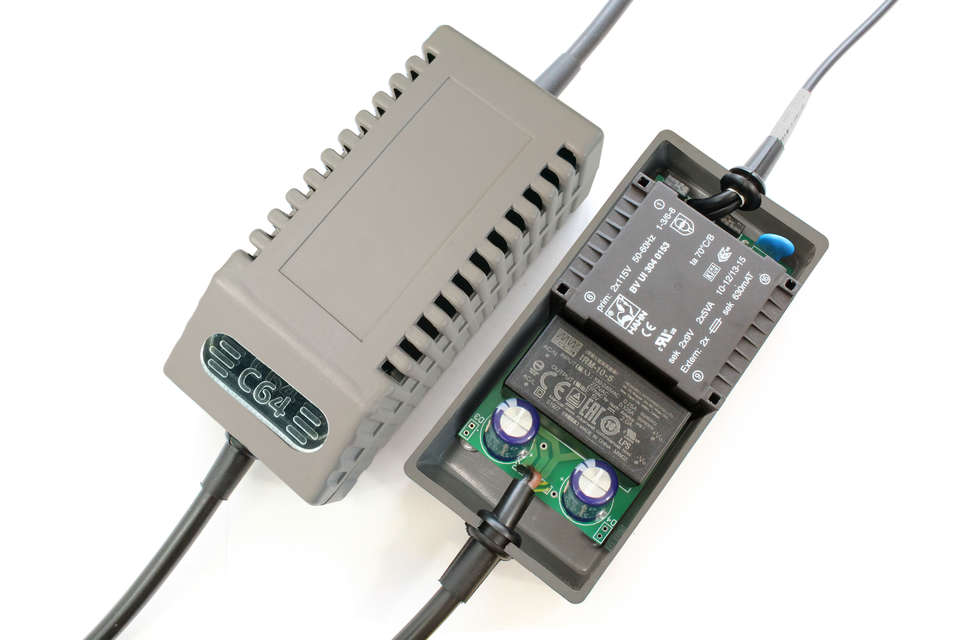

Our C64 PSU is designed to be safe for the user, and safe for the computer. It's protected from over-current and over-voltage, and fused on both the AC and DC sides. Nevertheless, it's mandatory to say that this is a 120/230V AC power device, which should not be opened, tampered with, or used for anything else than powering an unmodified Commodore 64 computer. It's intended for indoor usage only, the maximum rated current should not be exceeded, and proper ventilation should be ensured. For reference, a picture of the opened power supply is shown below.
