OLED-skærm

Generic brand

1 anmeldelser

$9.00 USD

OLED display for use with e.g. OpenFlops/Gotek and HippoFlops.

Interface: I2C.
Driver IC: SSD1306 or SH1106
Pins: GND, VCC (DC 3.3~5 V), SCL, SDA

Comes with 10 cm 4-pin jumper female/female cable.

Available in these sizes:

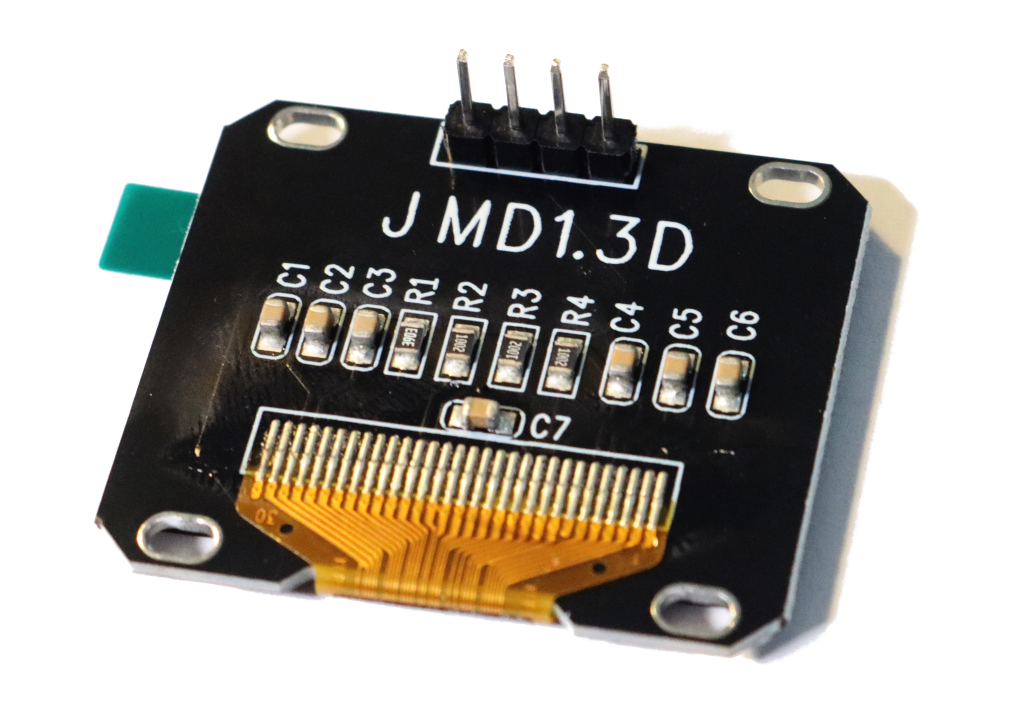

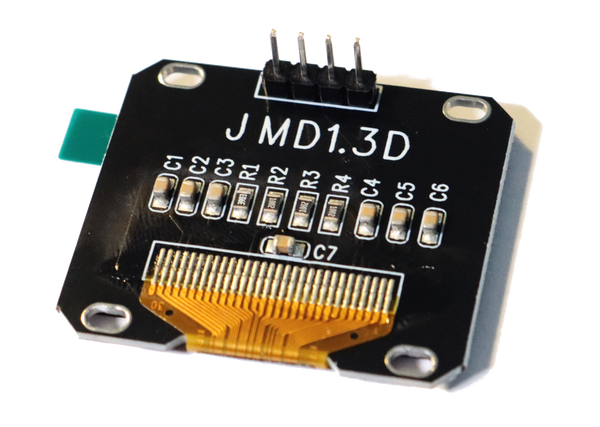

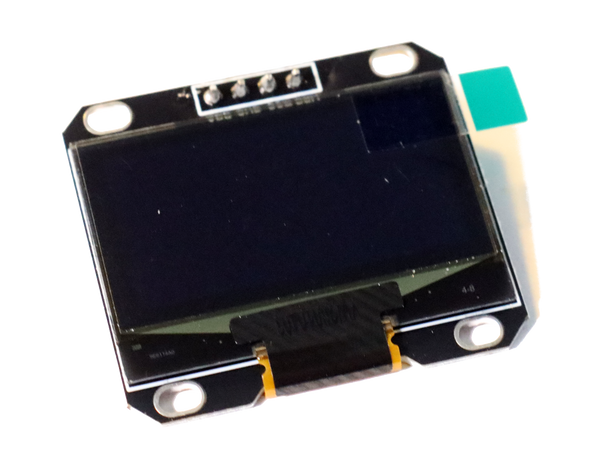

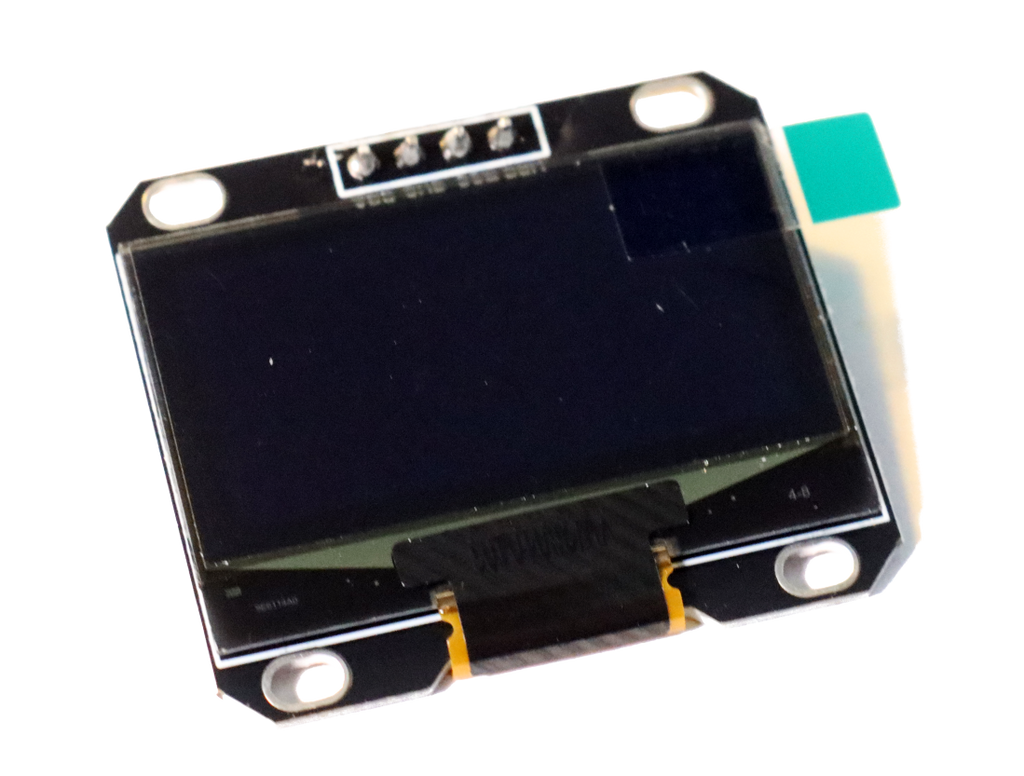

1.3 inch, 128x64 pixels, 32x35.5x4.1 mm: Larger screen with two lines of text on FlashFloppy. The HippoFlops is designed for this screen size (but will work with others without issue)

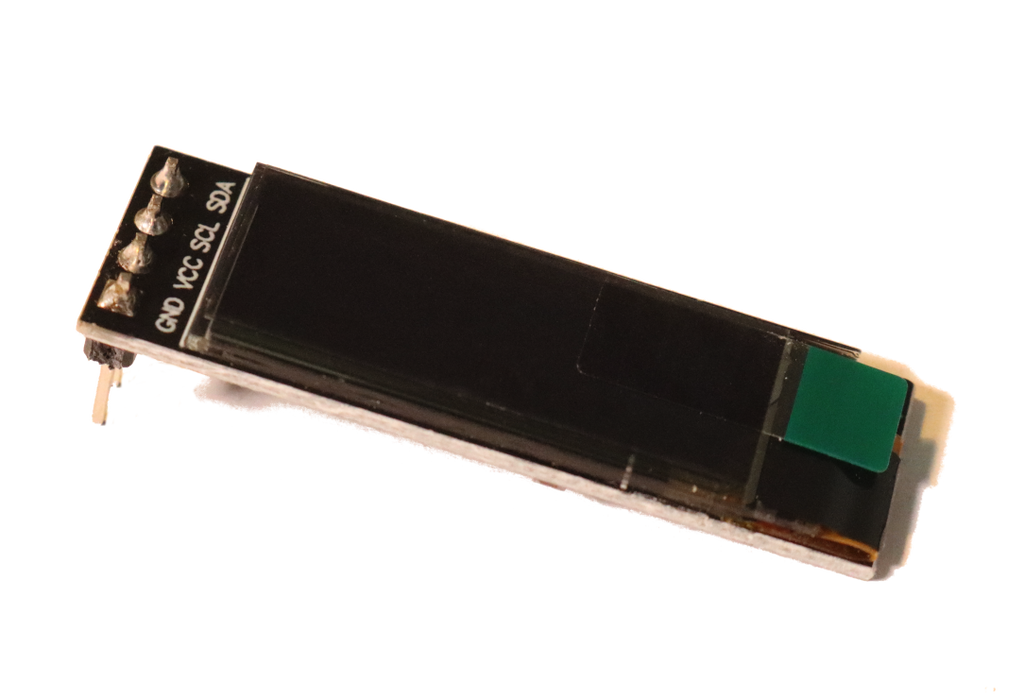

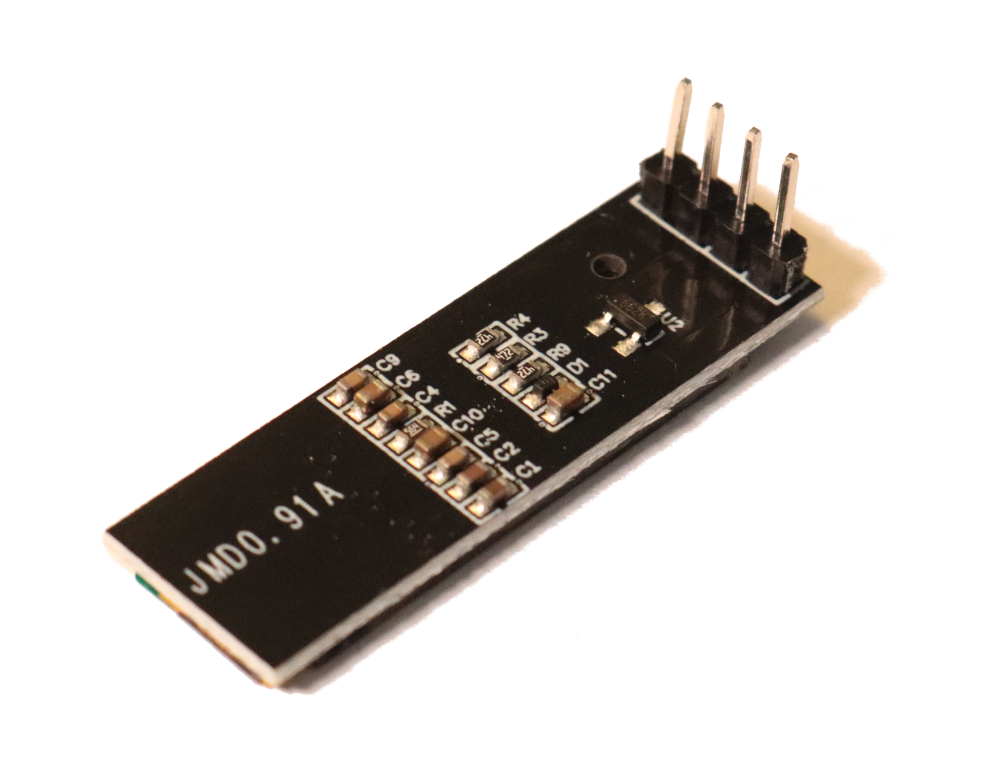

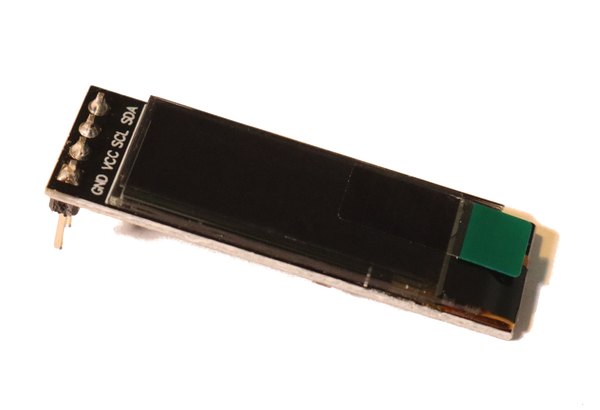

0.91 inch, 128x32 pixels: Smaller, low-height screen, useful for mounting in e.g. floppy drive slots

Brand: Generic brand

SKU:

oled-1.3 ( 1.3 inch)

oled-0.91 ( 0.91 inch)

Net weight:

9 g ( 1.3 inch)

7 g ( 0.91 inch)

HS code: 85241100

Country of origin: CN
